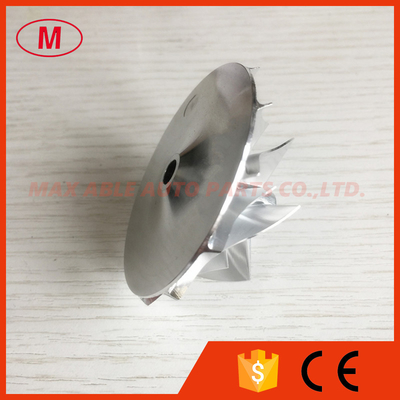

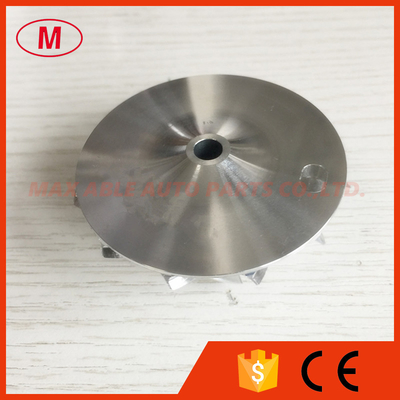

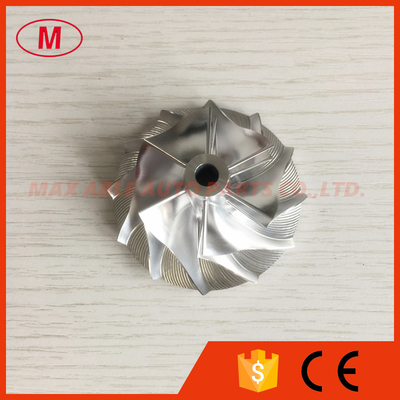

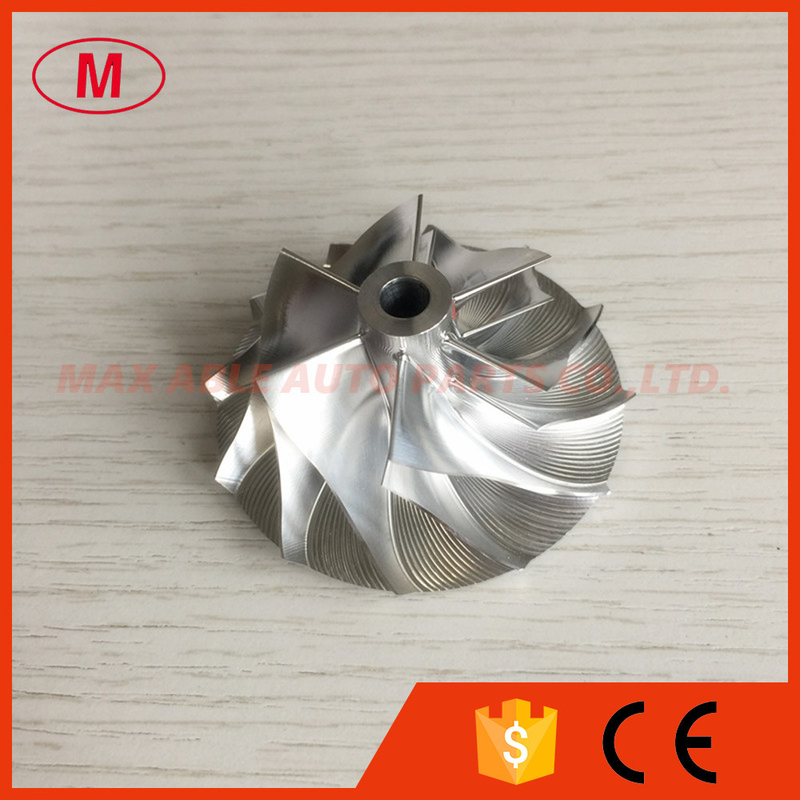

GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006

GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006

    • GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
    • GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
    • GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
    • GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
    • GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006

    تفاصيل المنتج:

    اسم العلامة التجارية: NO
    Model Number: GT15-25

    شروط الدفع والشحن:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج

    1. MODEL:GT15-25 forward
    2.GT15-25 39.60/56.02mm 707747-0005H 6+6 blades Billet/milling/aluminum 2618 compressor wheel for Alfa Romeo/Lancia 454150-0005/0006/701900-0002/443824-0024
    3.Size:
    Nose diameter:11.35mm
    Inducer:39.60mm
    exducer:56.02mm
    Tapered tip exducer:58.90mm
    Tip height:3.49mm
    Superback:2.39mm
    bore size :5.99mm
    bore type:through
    Overall height:26.10mm
    Cutback:0.0MM
    Trailing Angle:60
    SP height angle:-6.00
    Splitter height:13.40
    Blade height:20.17mm
    6+6 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:30 degree
    Application:
    454150-0005

    454150-0006

    701900-0002
    443824-0024
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
    GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
    GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
