| Place of Origin: | China |
| اسم العلامة التجارية: | no |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

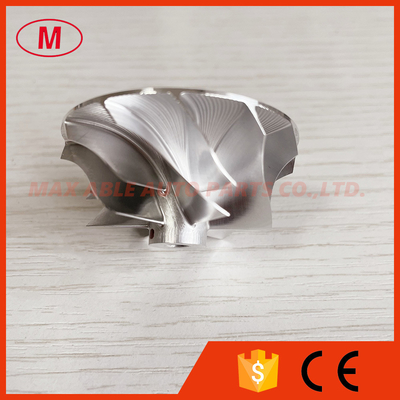

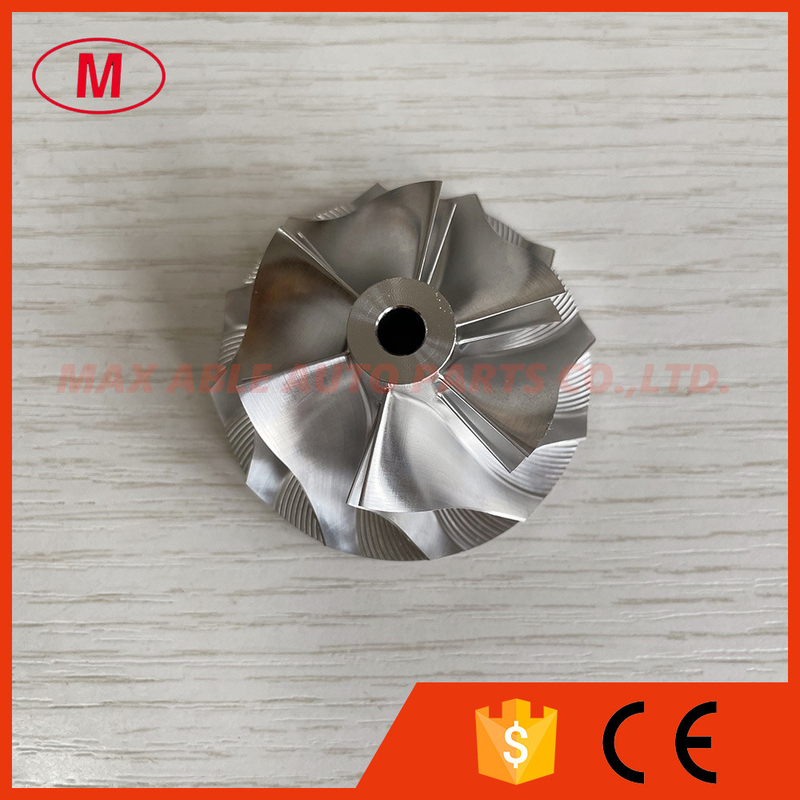

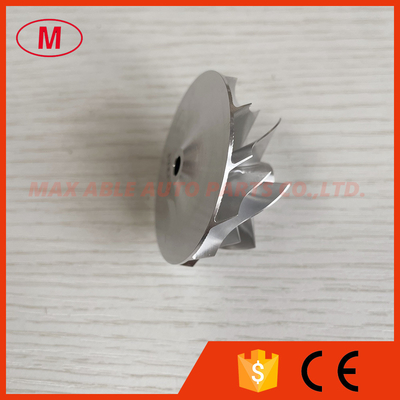

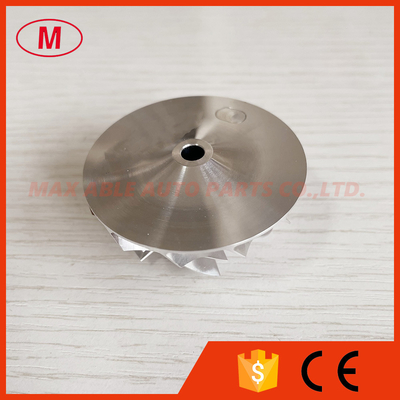

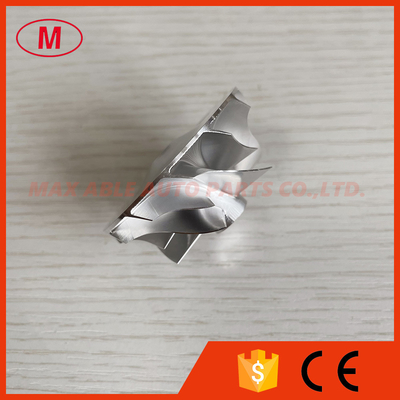

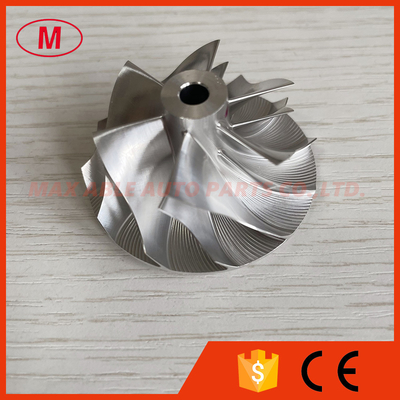

2.GT15-25 433256-0003 37.91/49.00mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 466501/471189/700917/708337
3.Size:
Nose diameter:11.77mm
inducer:37.91mm
Exduder:49.00mm
Tip height:5.56mm
Superback:2.40mm
Overall height:24.89mm
bore size :5.08mm
bore type:through
Trailing Angle:50 degree
Cutback:0.00
SP height angle:-5.50
Splitter height:13.60mm
Blade height:18.82mm
6+6 blades
Forward rotation
Tapered tip angle:0 degree
Fit for OE compressor housing
Application:
466501
471189
700917
708337
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
